Beautiful design split water electromagnetic flow meter converter

Name: Beautiful design split water electromagnetic flow meter converter
Brand: ZhenHua
Price: 60.00 USD

China Beautiful design split water electromagnetic flow meter converter wholesale

Place of Origin : Zhejiang, China

Brand Name : ZhenHua

Model Number : EMF85

Product Name : electromagnetic converter

Language : English, Chinese

Structure : Integrated type, Split type

Work Power : 220VAC, 24VDC

Current Output : 4~20mA, Pulse

Communication : RS485

Accuracy : 0.5,0.3

Material : Die-casting aluminum

Packaging Details : Cartons or Woodens Package of Flow measuring instruments flanged 25mm water flow meter

MOQ : 5 Pieces

Price : $60.00/Pieces

Contact Now

Beautiful design split water electromagnetic flow meter converter

Beautiful design split water electromagnetic flow meter converter

Beautiful design split water electromagnetic flow meter converter

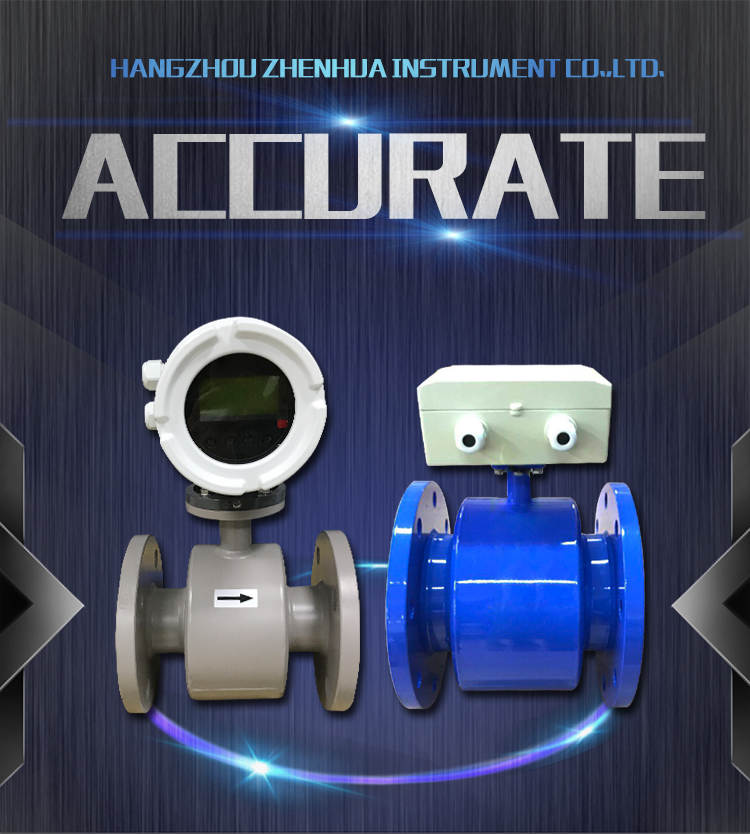

Flange type electromagnetic flowmeter consists of the converter of EMF85, and the sensor of flange type.

Flange type sensor uses the way of connecting the flange with pipe,It has various types of electrode material and lining material.

The sensor and converter can be combined into intergrated or split electromagnetic flowmeter.

Flange type electromagnetic flowmeter can be widely used not only in genaral process test,but also

in the chemical industry,water-supply,waste-water monitoring ore pulp or paper plup etc.

Beautiful design split water electromagnetic flow meter converter

Display	3-line English LCD display,directly show the data of forward and reverse flow,percentage of the flow and flow velocity.
Parameter Setting	Setting the parameter with the botton
Language	Chinese,English
Current Output	4-20mA, Load Resistance ≤ 500Ω (can choose with HART protocol )
PIO	CCan choose passive pulse output,active pulse output,state output/alarm output.
	Passive pulse output 30VDC(Off),200mA(On); 0.0001~5000HZ; Pulse width:50% duty cycle or the fixed value(≤100ms)
	Active pulse output 0.0001~2HZ,≤150mA,15VDC±20%;Pulse width:≤100ms(The default value:20ms)
	State/Alarm Output Contact capacity:30VDC(Off), 20mA(On) can choose relay output
Communication	RS485(MODBUS-RTU, MODBUS-ASCⅡ)
Power Supply	220VAC, 24VDC
Potection Level	IP65
Accuracy	0.5, 0.3
Structure	Intergrated type, Split type

Technical data of Flange type sensor

Application	All conductive liquid including water,beverage,various of corrosive media and liquid-solid two-phase fluid(mud,paper pulp).
Diameter	DN3~DN2000
Pressure	0.6~4.0MPa(Depend on the different diameters,reference sheet 1,special pressure can be customized)
Electrde Material	SS316L,Hc,Hb,Ti,Ta,W,Pt
Lining Material	Ne,PTFE,PU,FEP,PFA
Temperature	-40~180 ℃(Note:limited by the lining material's temperature resistance,reference sheet 7)
Shell Material	Carbon steel(Stainless steel can be customized)
Protection Level	IP65,IP67,IP68
Connection	GB/T9119-2010(Can connect with HG20593-2009 flange directly),JIS,ANSI or customized.
